HOW IT WORKS

The Bud Sorter is available in 2 different sizes: The Bud Sorter & The Bud Sorter Mini. The sorters let you accurately, efficiently, and safely sort your buds into shake, popcorn, small, medium, and large buds. Without vibration or moving parts, your buds stay in pristine condition. The Bud Sorter is typically used as a quality control station.

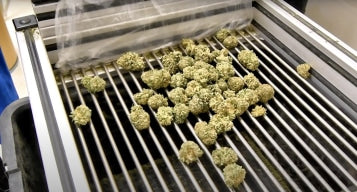

• Place roughly 1lb of dried, trimmed buds onto the ¼” grate. Use the soft, food-grade brushes to gently move the product over the different-sized grates, sorting the buds by size.
• The Bud Sorter is best used after drying and trimming but before quality control and packaging. Removing the small buds and shake from the QC and touch-up process will significantly improve efficiency.

Sort From Both Sides to Double Productivity

If you only want to remove small buds and shake, you can double your productivity by sorting from both sides. Place a ¼” and ½” grate on both sides of the Bud Sorter and brush your product into the center bin.

Doubles as a Work Surface

When you are done sorting, place the lower shelf on top of the Bud Sorter to create another work surface for your trim room.

Additional grates can be custom made to your preferred size.

• The Bud Sorter Sorting Grate Sizes come standard in the following sizes (custom sizes can be made in 1/8” increments): 1/4”, ½”, 3/4”, 1”, 1 1/4”
• The Bud Sorter Mini Sorting Grate Sizes come standard in the following sizes (custom sizes can be made in 1/8” increments): 1/4”, ½”, 3/4”

ASSEMBLY & OPERATION

ASSEMBLY

1.The first step for both the Bud Sorter and The Bud Sorter Mini is to unwrap the protective plastic from the unit, cut the banding and remove the unit or parts from the pallet

2.Please watch this assembly video for assembly of The Bud Sorter: https://youtu.be/GFQ7MFjOE80

3.The Bud Sorter Mini comes fully assembled –  all that is required is to place the 4 totes under each grate and at the end of the sorter

OPERATION

• Load product onto the first grate in the sequence

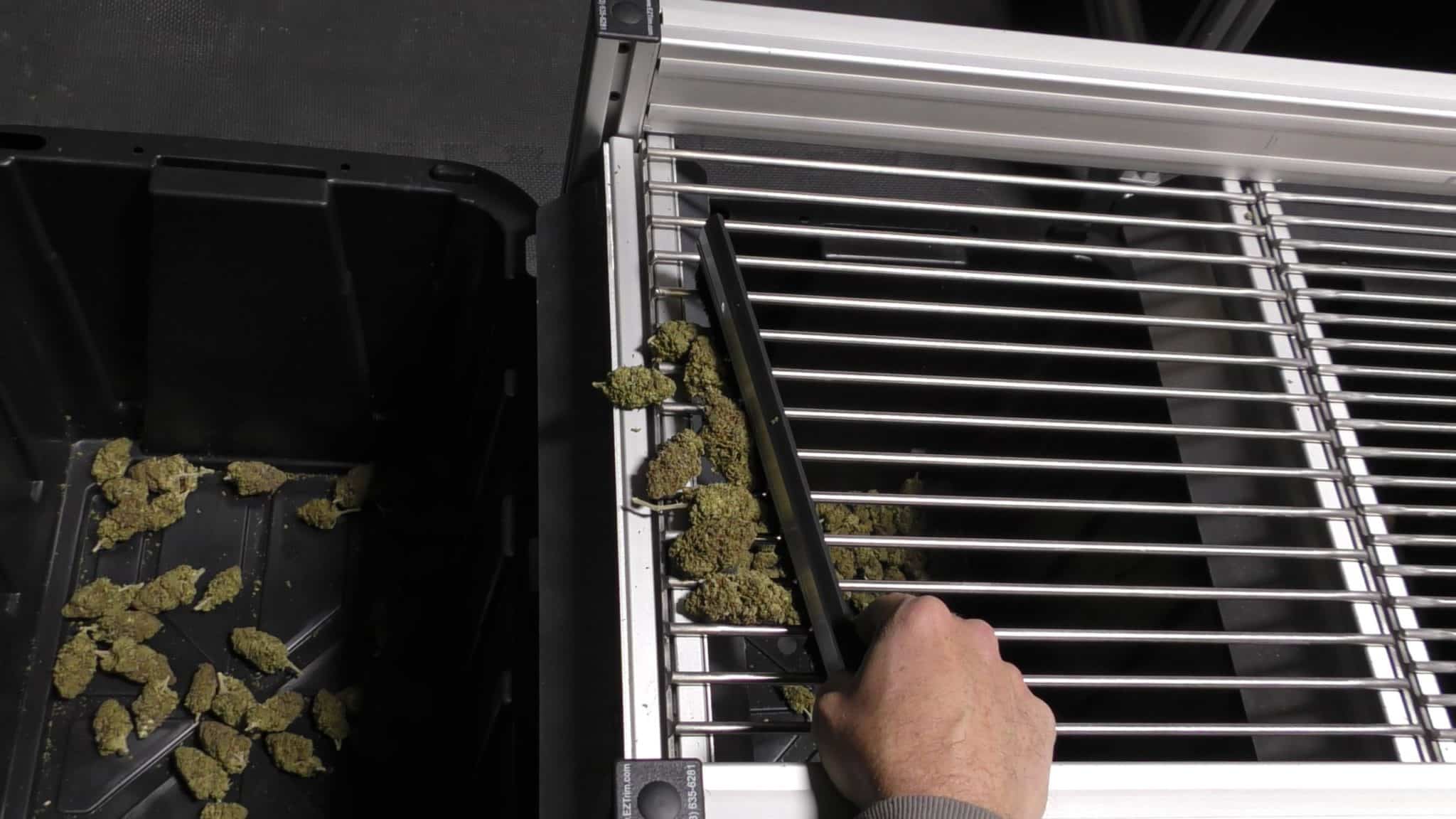

• Brush product back and forth and down the grates until all product has fallen into the containers
• If you only want to remove small buds and shake, you can double your productivity by sorting from both sides. Place a ¼” and ½” grate on both sides of the Bud Sorter and brush your product into the center bin.
• Average throughput for every Sorter should be 40,000 grams (88 LBS) per hour of dried finished Bud

TIPS AND TRICKS

1.Brush product back and forth on the grates a couple of times before moving on to improve results

2.Use the Bud Sorter as your Quality control station

3.Place the shelf of the Bud Sorter on the top of the table as a work surface when not using it to sort

CLEANING & SPECIFICATIONS:

CLEANING AND MAINTENANCE

1.Wipe down with denatured alcohol and a rag

2.If you have a pressure washer, you can use it for a quick rinse or to make your wipe down easier

MATERIAL EXPOSED TO PRODUCT

A.Aluminum – Food Grade

B.Stainless Steel – Food Grade

C.Plastic Totes – HDPE

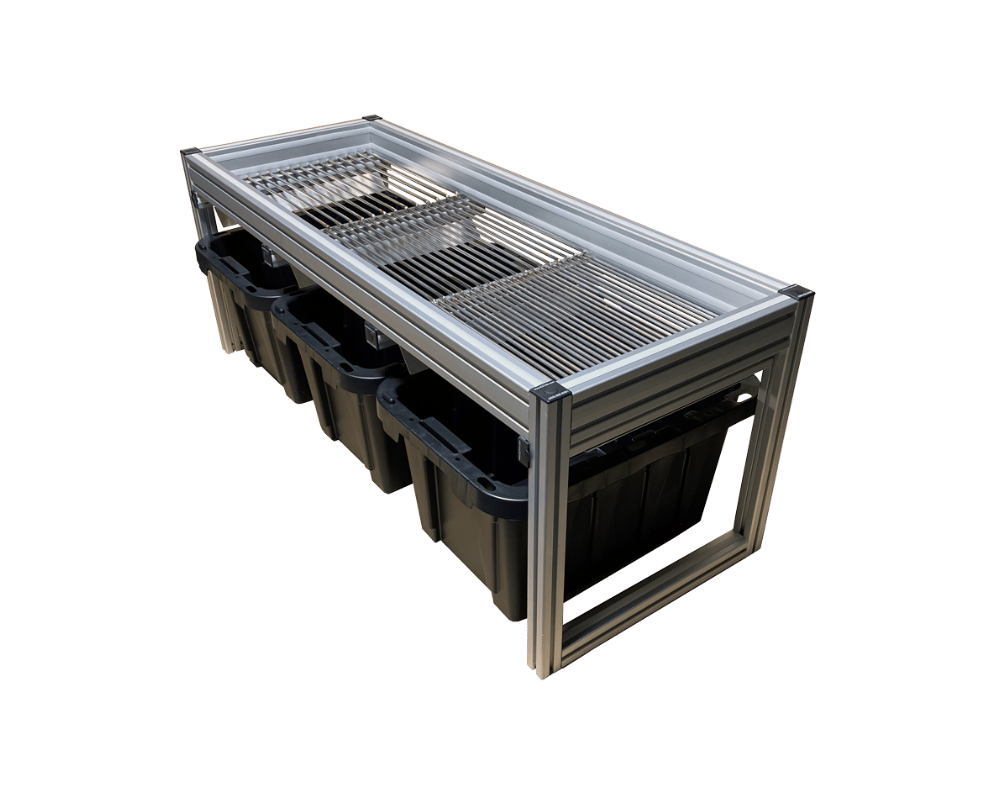

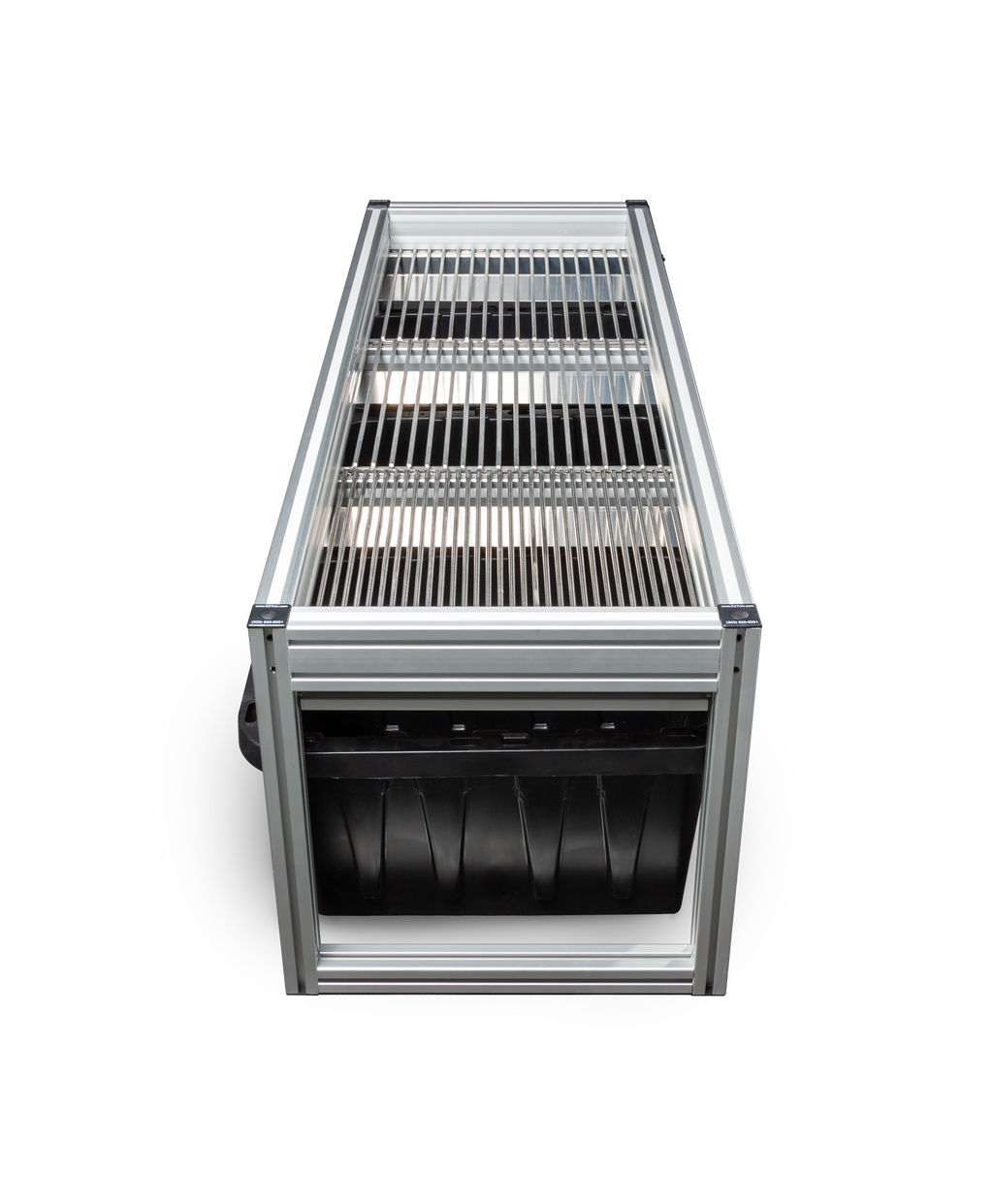

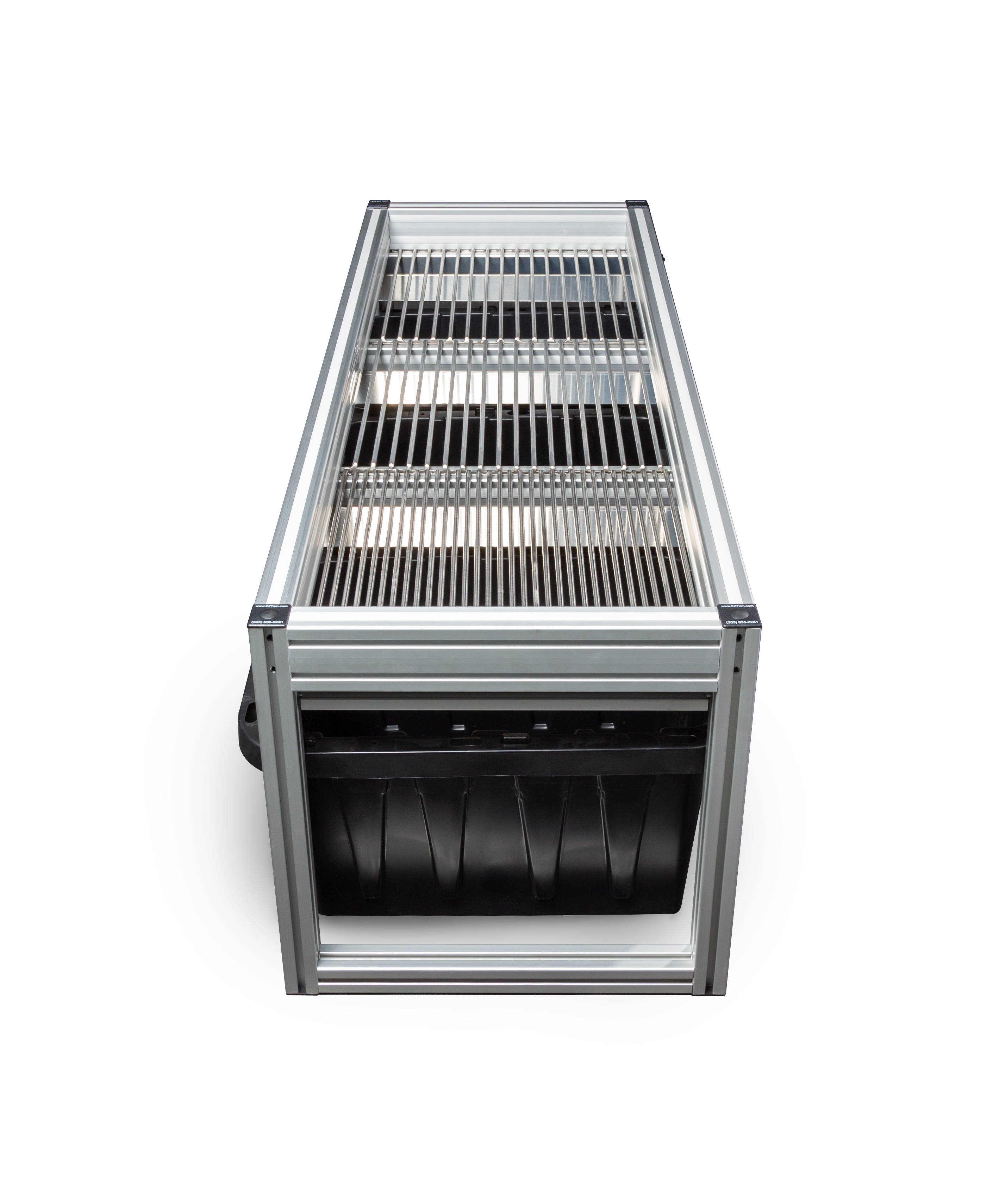

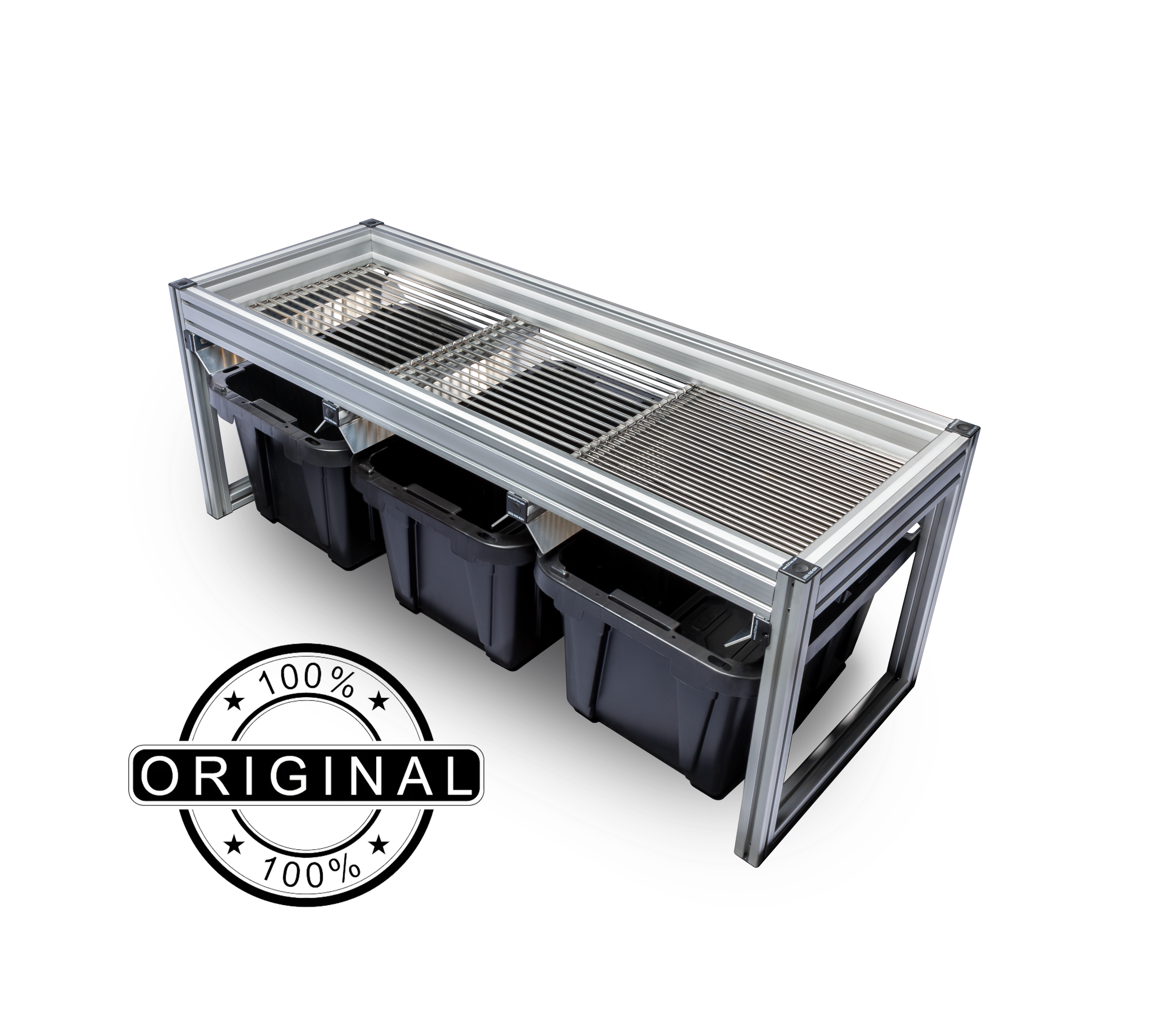

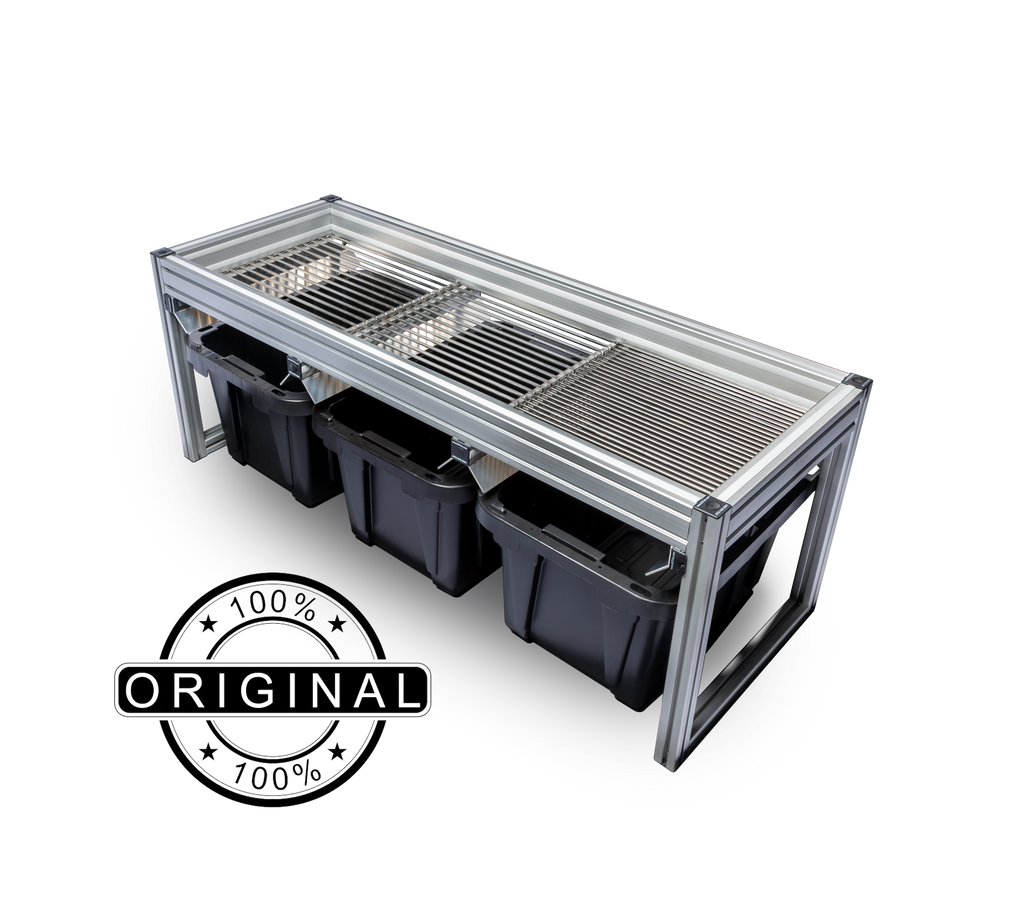

SPECIFICATION – The Bud Sorter Mini

• Weight: 62 lbs
• Ship weight: 120 lbs
• Assembled Dimensions: 66″L x 19″w x 19″H
• Ship Dimensions: 60″L x 40″W x 30″H
• Production (single operator): >.5lb / <1 minute
• 4 x 12-gallon containers
• Grate size – 16” x 16”
• Grate slot sizes: 1/4”, ½”, ¾”
